INTRODUCTION

RSE-130-1000 Inclined Single-Layer Plastic Sheet Extruder Unit

The RSE-130-1000 inclined single-layer plastic sheet extruder unit is composed of an extruder, calender, haul-off unit, winder, and electrical control cabinet. Its integrated mechanical, pneumatic, and electrical design ensures high-quality sheet production, guaranteeing uniform mixing and plasticization of thin sheets and meeting various production requirements. All components of the machine are selected from renowned domestic and international brands, ensuring high efficiency and stability throughout the entire production process.

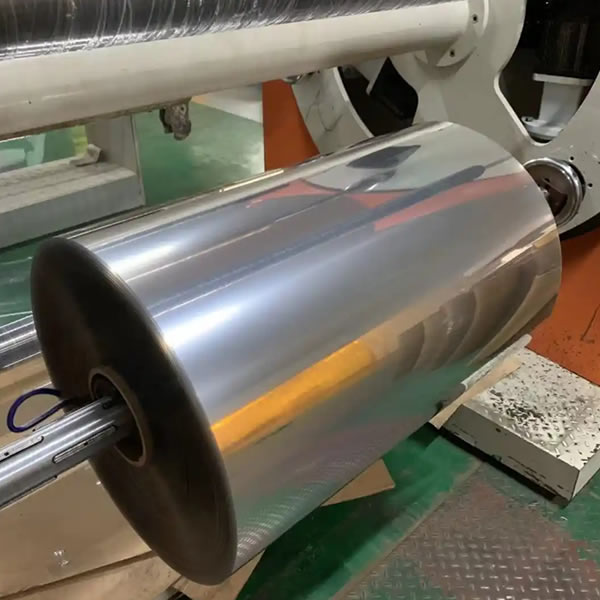

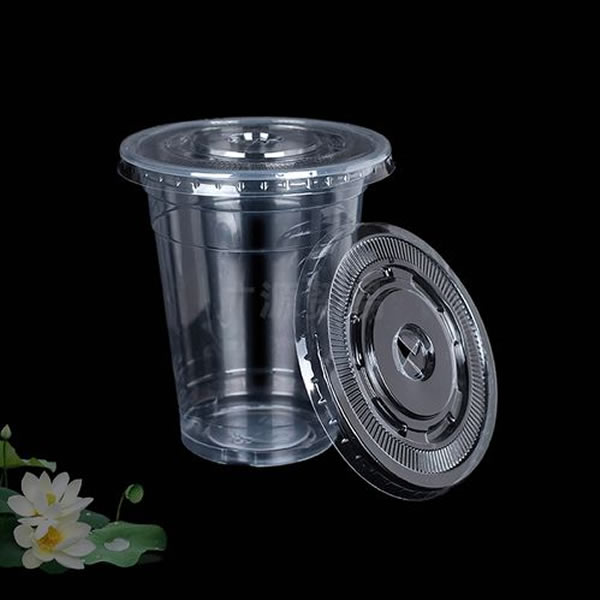

It is suitable for extruding plastic sheets made of polypropylene (PP), polystyrene (PS), and polyethylene (PE). The formed plastic sheets are used to produce thermoformed packaging containers, such as plastic trays, beverage cups, ice cream cups, yogurt cups, lids, plates, fruit boxes, as well as other printed products.

FEATURES AND ADVANTAGES

1. High degree of standardization, simple operation, reliable performance, low noise, and high quality.

2. Integrated mechanical, pneumatic, and electrical systems, controlled by a microcomputer and programmable logic controller (PLC).

3. Easy-to-use human-machine interface with remote connection capability.

4. Major components, including the screw, barrel, screen changer, and die head, are constructed of high-quality alloy steel (38CrMOAIA) and nitrided, featuring high hardness, corrosion resistance, and long service life.

5. Optimized screw design with a large aspect ratio ensures uniform plasticization, excellent mixing, and high production capacity.

6. The extruder frame is constructed of square steel, ensuring stable high-speed operation and continuous production without downtime.

7. The extruder motor and gearbox are directly connected, effectively improving production efficiency.

8. The screen changer utilizes a hydraulic dual-screen mechanism, eliminating the need to stop the machine for screen changes. This provides convenient operation and enhanced production efficiency.

9. The machine's calendering, pulling, and winding sections (including waste edge winding) feature a separate design, which is aesthetically pleasing and easy to install and debug.

10. The calendering roller's inner liner features a spiral groove design, providing excellent cooling effect and enhanced rigidity.

11. The calendering roller can be optionally equipped with an independent temperature control system to meet diverse process requirements.

12. Optional gantry and flip-type winding machines are also available, and multi-station customization is also supported.

SPECIFICAITON

Applicable Materials	PP, PS, PE	Main Motor Power	160kw
Product Width	PP, PE: 850mm PS: 750mm	Heating Power	85kw
Product Thickness	PP, PE: 0.3-2mm PS: 0.2-2mm	Total Power	235kw
Effective Die Width	1000mm	Flow Rate	80m³/h
Effective Roller Width	1000mm	Line Speed	15-30m/min
Three Roller Diameters	400mm1 600mm2	Production Capacity	300-400kg/h
Screw Diameter	130mm	Equipment Weight	12000kg
Screw Aspect Ratio	1:36	Equipment Dimensions	Length * Width * Height 1350018003500mm
