PP Sheet Extruder

Model：RSE-120-1000

Plastic Sheet Extruder

Contact Details

WhatsApp： 8615355870907

Email： zhu@cnrayshape.com

Plastic Sheet Extruder PDF Enquire Now

INTRODUCTION

RSE-120-1000 Inclined Single-Layer Plastic Sheet Extruder Unit

The RSE-120-1000 inclined single-layer plastic sheet extruder unit is composed of an extruder, calender, haul-off unit, winder and electrical control cabinet. Its integrated mechanical, pneumatic and electrical design ensures high-quality sheet production, guaranteeing uniform mixing and plasticization of thin sheets and meeting various production requirements. All components of the machine are selected from renowned domestic and international brands, ensuring high efficiency and stability throughout the entire production process.

It is suitable for extruding plastic sheets made of polypropylene (PP), polystyrene (PS) and polyethylene (PE). The formed plastic sheets are used to produce thermoformed packaging containers, such as plastic trays, beverage cups, ice cream cups, yogurt cups, lids, plates, fruit boxes, as well as other printed products.

FEATURES AND ADVANTAGES

1. High degree of standardization, simple operation, reliable performance, low noise, and high quality.

2. Integrated mechanical, pneumatic, and electrical systems, controlled by a microcomputer and programmable logic controller (PLC).

3. Easy-to-use human-machine interface with remote connection capability.

4. Major components, including the screw, barrel, screen changer, and die head, are made of high-quality alloy steel (38CrMOAIA) and subjected to nitriding treatment, featuring high hardness, corrosion resistance, and a long service life.

5. The optimized screw design with a large aspect ratio ensures uniform plasticization, excellent mixing effect, and high production capacity.

6. The extruder frame is made of square steel, which ensures stable high-speed operation and continuous production without downtime.

7. The extruder motor is directly connected to the gearbox, effectively improving production efficiency.

8. The screen changer adopts a hydraulic dual-screen mechanism, which eliminates the need to stop the machine for screen changes, providing convenient operation and enhanced production efficiency.

9. The machine's calendering, pulling, and winding sections (including waste edge winding) adopt a separate design, which is aesthetically pleasing and easy to install and debug.

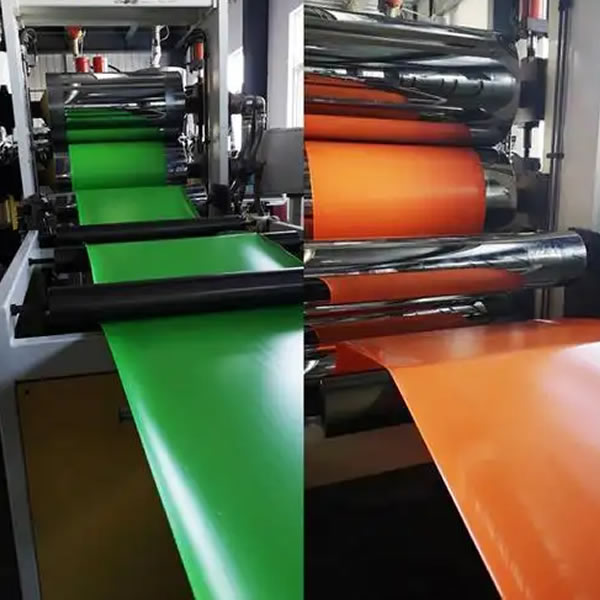

10. The inner liner of the calendering roller is designed with spiral grooves, providing excellent cooling effect and enhanced rigidity.

11. The calendering roller can be optionally equipped with an independent temperature control system to meet diverse process requirements.

12. Optional gantry and flip-type winding machines are available, and multi-station customization is also supported.

SPECIFICAITON

Applicable Materials	PP, PS, PE	Main Motor Power	132kw
Product Width	PP, PE: 850mm PS: 750mm	Heating Power	75kw
Product Thickness	PP, PE: 0.3-2mm PS: 0.2-2mm	Total Power	210kw
Effective Die Width	1000mm	Flow Rate	80m³/h
Effective Roller Width	1000mm	Line Speed	15-30m/min
Three-Roller Diameter	400mm1 500mm2	Production Capacity	300-400kg/h
Screw Diameter	120mm	Equipment Weight	10,500kg
Screw Aspect Ratio	1:35	Equipment Dimensions	Length * Width * Height 13,000 * 1,800 * 3,000mm
