Thermoforming Cup Machine
Model: RSC-800-500
RS-800-500 is a new generation full servo Thermoforming Cup Machine. It uses internationally advanced plastic sheet forming technology. It is a pla...
RSC Automatic Plastic Thermoforming Machine
Model：RSC-800-500
$49000
INTRODUCTION
RS-800-500 is a new generation full servo plastic thermoforming machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment that integrates mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming and cutting. Compared with hydraulic drive, this machine has more stable forming, faster speed and cleaner production.
It is suitable for processing different materials, such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier materials, and is suitable for the production of various beverage cups, coffee cups, milk cups, water cups, bowls, boxes and other plastic products.

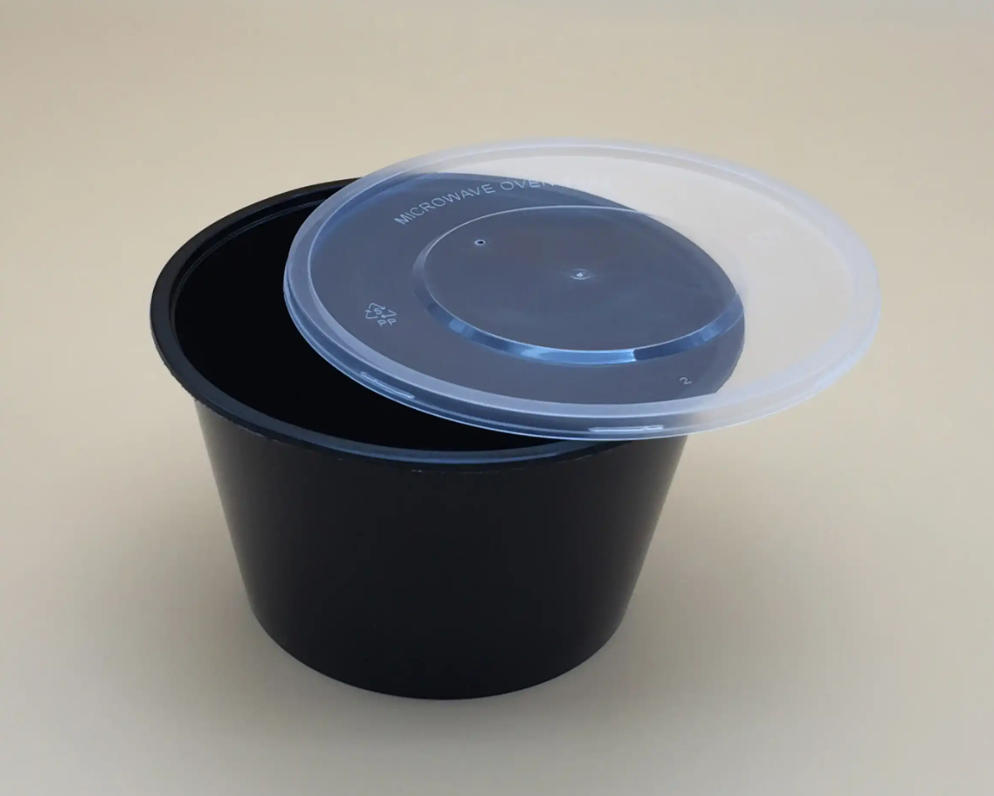

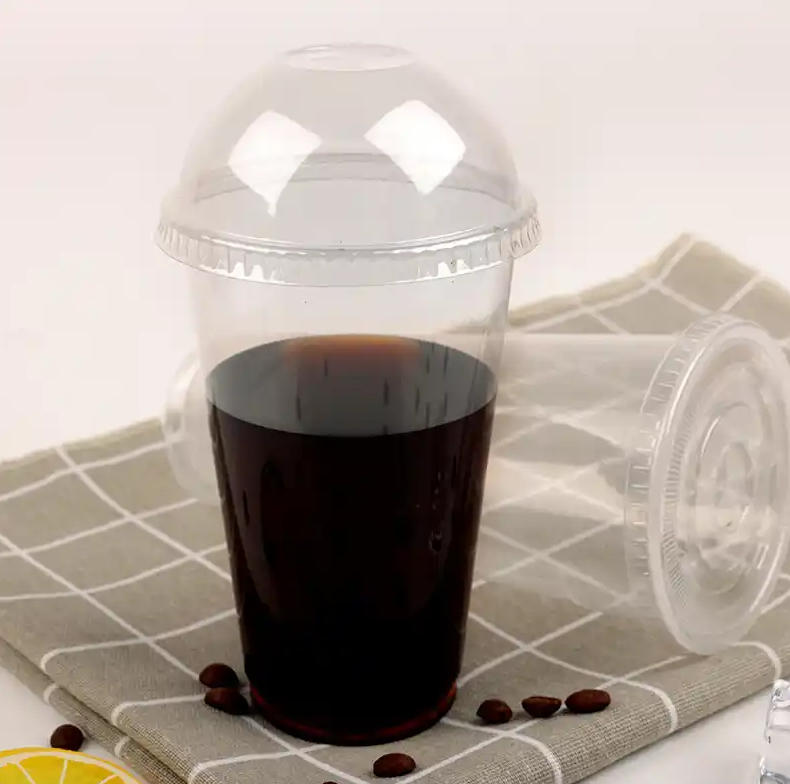

PRODUCTS RANGE
FEATURES AND ADVANTAGES
1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.
2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).
3. Easy-to-operate human-machine interface, and has the function of remote connection.
4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.
5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.
6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.
7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.
8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.
9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.
10. The chain frame features a fast cooling and wear-resistant design.
11. The cup blowing system offers adjustable blowing angle and air volume.
12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.
13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.
14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.
SPECIFICAITON
|
Sheet Materials |
PP/PS/PET/PLA/PE/CPET |
Air Consumption |
4m³/min |
|
Sheet Thickness |
0.2-2.5mm |
Weight |
7500kg |
|
Forming Area |
780*480mm |
Total Installed Power |
150KW |
|
Width Of Sheet |
400-850mm |
Heating Power |
122kw |
|
Max Speed |
35moulds/min |
Feeding Motor |
4.4kw |
|
The Longest Knife |
12m |
Control Forming Plug Motor Power |
5.5kw |
|
Dimension |
4500*2000*2600mm |
Winding Waste Of Edge Sheet Motor Power |
0.4kw |
|
Forming clamping force |
1100kn |
Forming Motor |
15kw |
|
Max. Forming Depth |
≤180mm by blowing |
Machine Travel |
≤220mm |
