Plastic Cup Making Machine
Model: RSC-800-500
RS-800-500 is a Plastic Cup Making Machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipm...
Thermoforming Cup Machine
Model：RSC-800-500
$49000
INTRODUCTION
RS-800-500 is a new generation full servo Thermoforming Cup Machine. It uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment that integrates mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming and cutting. Compared with hydraulic drive, this machine has more stable forming, faster speed and cleaner production.
It is suitable for processing different materials, such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier materials, and is suitable for the production of various beverage cups, coffee cups, milk cups, water cups, bowls, boxes and other plastic products.
MACHINE STRUCTURE

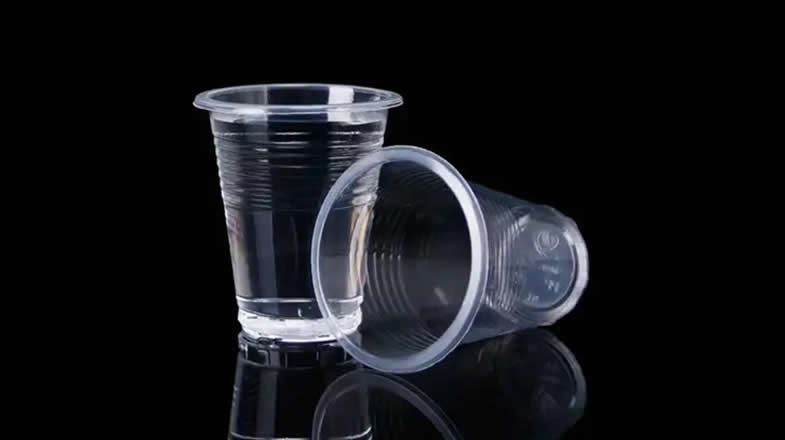

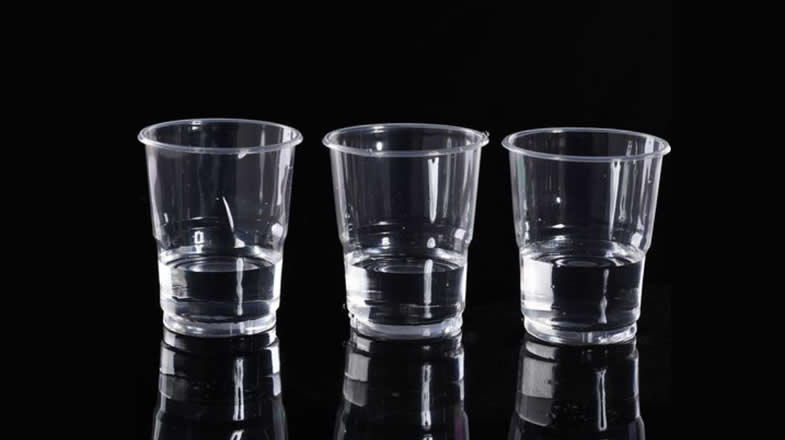

PRODUCTS RANGE
FEATURES AND ADVANTAGES
1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.
2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).
3. Easy-to-operate human-machine interface, and has the function of remote connection.
4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.
5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.
6. The upper and lower electric heating furnaces are used for 6-7 heating stages and protection to reduce the impact of air convection on temperature, ensuring stable product molding. It only takes 3 minutes to heat from 0 to 400 degrees, improving production efficiency. The electric heating furnace can be automatically removed.
7. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.
8. The mold opening and closing by servo motor, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.
9. Positive pressure forming ensures uniform thickness, full shapes, and sharp corners.
10. The chain frame features a fast cooling and wear-resistant design.
11. The cup blowing system offers adjustable blowing angle and air volume.
12. A servo motor chain drive automatically extends the track to prevent sheet sagging, ensuring stable, precise, and smooth sheet feeding.
13. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.
14. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.
SPECIFICAITON
|
Sheet Materials |
PP/PS/PET/PLA/PE/CPET |
Air Consumption |
4m³/min |
|
Sheet Thickness |
0.2-2.5mm |
Weight |
7500kg |
|
Forming Area |
780*480mm |
Total Installed Power |
150KW |
|
Width Of Sheet |
400-850mm |
Heating Power |
122kw |
|
Max Speed |
35moulds/min |
Feeding Motor |
4.4kw |
|
The Longest Knife |
12m |
Control Forming Plug Motor Power |
5.5kw |
|
Dimension |
4500*2000*2600mm |
Winding Waste Of Edge Sheet Motor Power |
0.4kw |
|
Forming clamping force |
1100kn |
Forming Motor |
15kw |
|
Max. Forming Depth |
≤180mm by blowing |
Machine Travel |
≤220mm |
PARTNER BARANDS
Product Ordering
Please fill in the following information
Cup Lid thermoforming machine
RSC Automatic Plastic Thermoforming Machine
Model: RSC-800-500
RS-800-500 is a new generation full servo plastic thermoforming machine. It uses internationally advanced plastic sheet forming technology. It is a...
Cup Lid thermoforming machine Video
Cup Lid thermoforming machine News
RAYSHAPE Plastic Thermoforming Machine
The Plastic Thermoforming Machine, often recognized as a multi-station thermoforming machine, represents a significant leap forward in manufacturing technology. Developed specifically to address the c...
Engineering Precision: Understanding the Mechanics of Rayshape Multi-station Thermoforming Machines
Introduction Precision engineering is the backbone of the plastic packaging industry. To produce a perfect Fruit box making machine output or a high-quality Cup Making Machine product, every millim...
The Green Revolution in Plastic Packaging: Material Versatility and Sustainability with Rayshape Machinery
The Global Shift in Packaging Dynamics The global packaging industry is undergoing a monumental shift. With increasing environmental regulations and a growing consumer preference for sustainable op...
Precision in Food Packaging: How Rayshape’s Multi-Station Systems Define the Future of Disposable Containers
Meeting the Rigorous Standards of the Food Industry In the food packaging sector, hygiene, consistency, and speed are the three pillars of success. Whether it is an Egg tray making machine ap...
The Digital Transformation of Thermoforming: Why Rayshape Control System is a Manufacturer Greatest Asset
The Evolution from Mechanical to Digital Intelligence The era of the "manual" factory is over. In today’s competitive landscape, the difference between profit and loss often comes down to how quick...
The Revolution of Automation in Modern Packaging: A Deep Dive into Rayshape Machinery’s Fully Automatic Thermoforming Solutions
Introduction In the rapidly evolving landscape of global manufacturing, the demand for efficiency, precision, and cost-effectiveness has never been higher. As industries shift toward sustainable an...

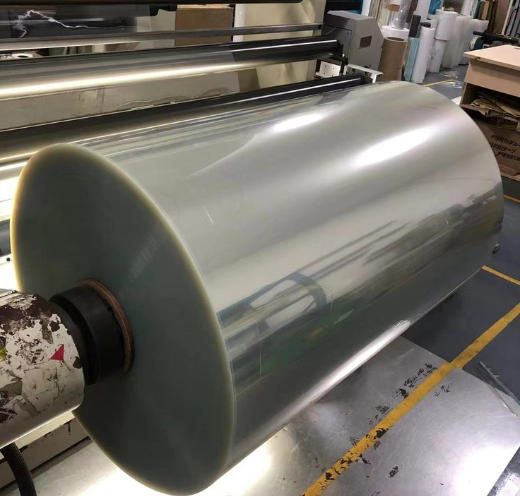

From Sheet to Shelf: The Integrated Production Power of Plastic Sheet Extruders and Thermoforming Lines
